Schmidt and Bender 1-8×24 Exos LM Scope
R76,950.00
Schmidt and Bender 1-8×24 Exos LM FD7 TMR 1cm cw ASV II LT / Posicon CT

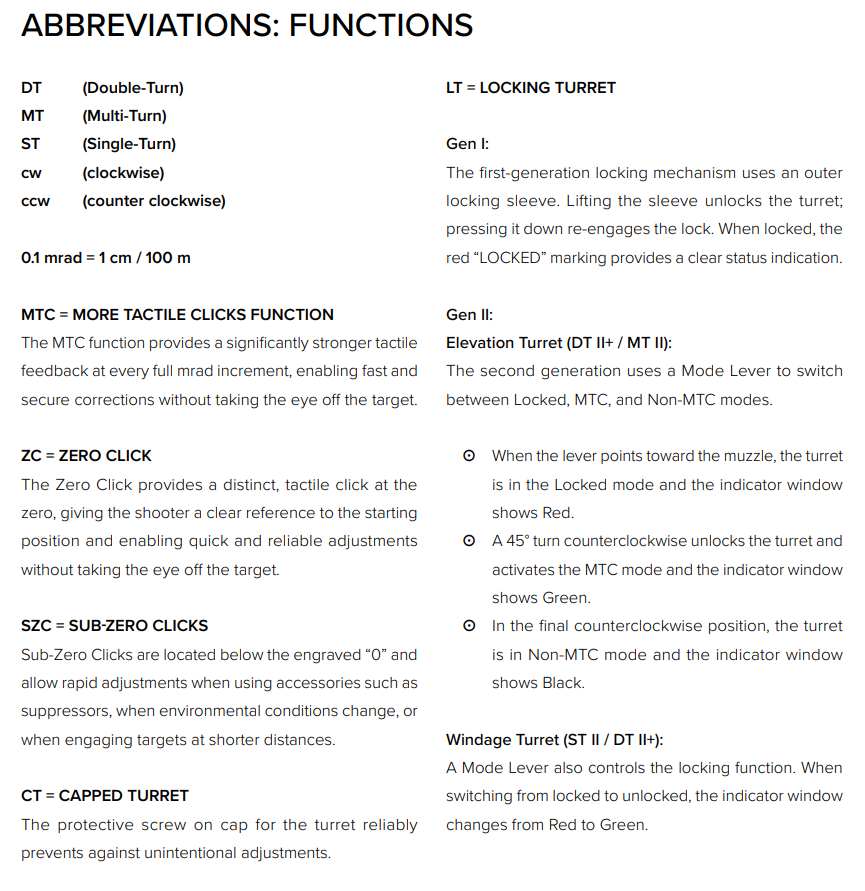

cw – Clockwise
ASV – Bullet Drop Compensation (BDC)
LT – Locking Turret
CT – Capped Turret
Available on back-order
Description
For outstandingly strong and absolutely precise short-range performance, the 1-8×24 Exos features the patented Close Combat Mode (CC Mode).
With a true 1x magnification, parallax-free shooting is automatically set to 7 m; from 1.1x magnification onwards it automatically switches to 100 m.

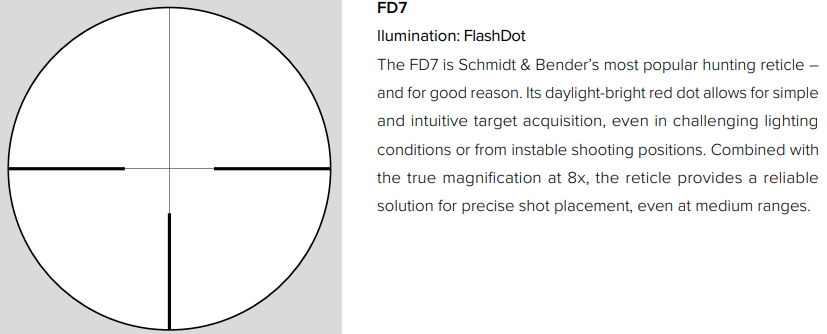

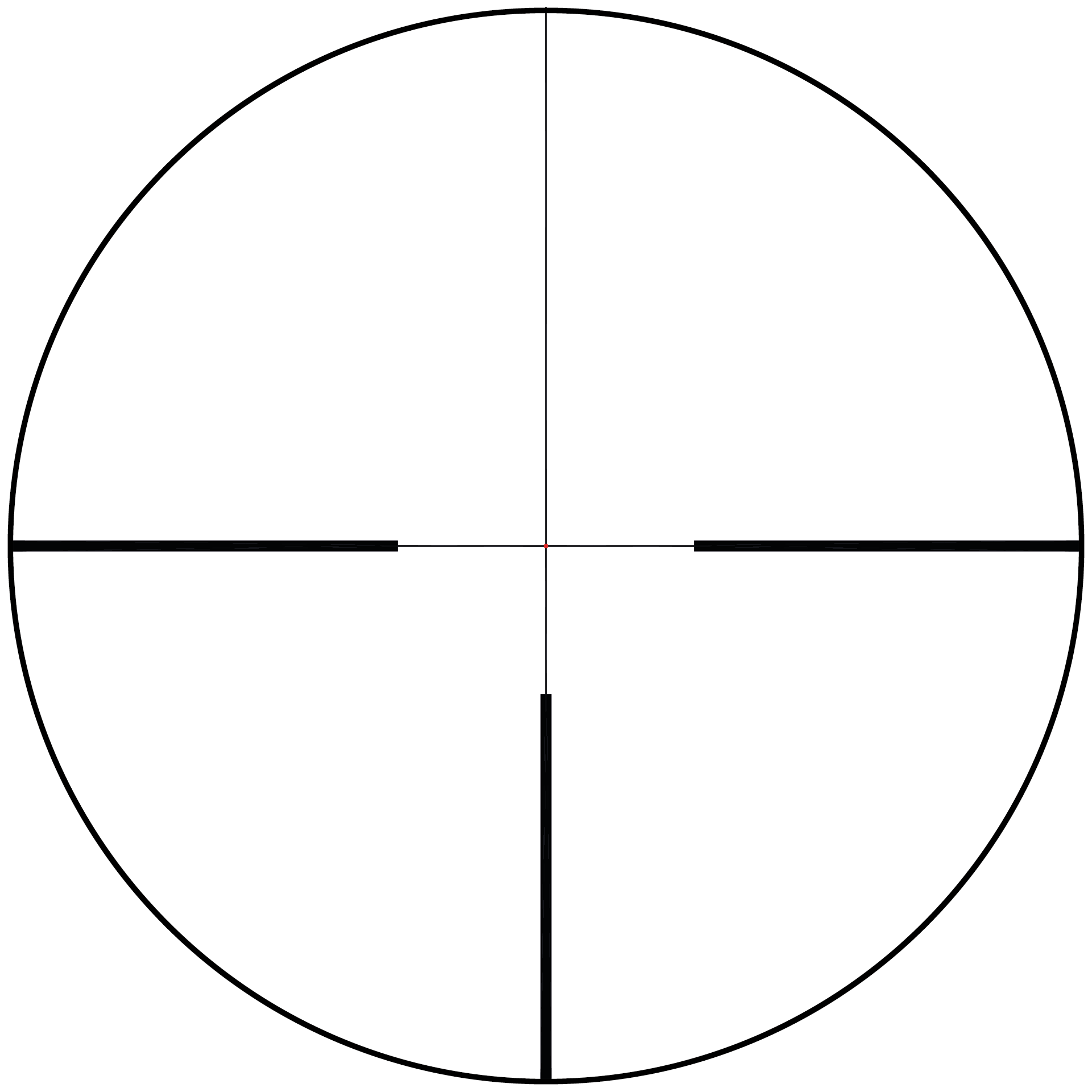

The large exit pupil allows for rapid target acquisition, while the daylight-bright FlashDot reticle in the Second Focal Plane (2. FP) provides additional support and remains clearly visible even during fast target engagement.
On fast moving game hunts, game can be identified reliably. An optional tactical CQB reticle also makes the 1-8×24 Exos suitable for Competition shooting.
In the TMR version, it is compatible with the optional Throw Lever magnification lever for quicker and more intuitive operation.
Technical Data
| Length (mm | in) | 293 | 11.535 |
| Main tube diameter (mm | in) | 30 | 1.18 |
| Weight (g | oz) | 570–605 | 20.11–21.34 |
| Magnification | 1–8 |
| Internal objective diameter (mm | in) | 24 | 0.945 |
| Outer diameter objective (mm | in) | 30 | 1.18 |
| Outer diameter ocular (mm | in) | 46.1 | 1.815 |
| Exit pupil diameter (mm | in) | 9.6–3.0 | 0.38–0.12 |
| Field‑of‑view (m/100 m) | (ft/100 yd) | 35.3–4.9 | 105.9–14.7 |
| Parallax adjustment (m | yd) | 100 (7 m in CC-Mode) | 109.36 (7.66 yd in CC-Mode) |
Download the Schmidt and Bender Catalogue here
